Visual hack: Spinal cord tracts made easy

Quick-hit shareable content for Spinal cord tracts. Include visual/mnemonic device + one-liner explanation. System: Neurology.

Spinal cord tracts feel like pure memorization… until you realize they’re basically a “map of traffic lanes” with a few repeatable rules. If you can picture where a tract sits and when it crosses, you can answer most Step 1/2 neuro questions in seconds.


The “3-Lane Spinal Cord” Visual Hack (shareable mental image)

Picture a cross-section of the spinal cord as a 3-lane highway:

  • Back lane (Posterior/Dorsal columns) = Vibration + Proprioception + Fine touch
  • Side lane (Lateral funiculus) = Motor (CST) + Pain/Temp (Spinothalamic) live here
  • Front lane (Anterior/ventral) = mostly “extras” (anterior CST, crude touch pathways) and less commonly tested

Now add the crossing rules:

  • DCML crosses in the medulla (“Dorsal columns Decussate in the Medulla”)
  • Spinothalamic crosses in the spinal cord (within 1–2 levels, via anterior white commissure)
  • Corticospinal crosses in the medulla (pyramidal decussation)

This is 80% of the battle.


One-liner mnemonics + what to test (per tract)

1) Dorsal Column–Medial Lemniscus (DCML)

Mnemonic: “VIP = Very Important Posterior”
One-liner: Posterior columns carry Vibration, Ipsilateral proprioception, Precise touch; they cross in the medulla.

High-yield facts

  • Modalities: vibration, proprioception, fine touch, pressure
  • Ipsilateral loss below the lesion in the spinal cord
  • Somatotopy in dorsal columns:
    • Gracilis = legs = medial
    • Cuneatus = arms = lateral
  • Classic association: tabes dorsalis, B12 deficiency (subacute combined degeneration)

2) Spinothalamic (Anterolateral System)

Mnemonic: “ST = Soon Turns” (crosses quickly)
One-liner: Pain & temperature enter, go up/down 1–2 levels in Lissauer tract, then cross via anterior white commissure and ascend contralaterally.

High-yield facts

  • Modalities: pain, temperature, crude touch
  • Contralateral loss begins a few levels below the lesion (because it ascends 1–2 levels before crossing)
  • Anterior white commissure lesionsbilateral pain/temp loss in a “cape-like” distribution
    • Classic: syringomyelia

3) Lateral Corticospinal Tract (CST)

Mnemonic: “CST = Crosses at the Skull-base (pyramids)”
One-liner: Voluntary motor fibers decussate in the caudal medulla, then descend ipsilaterally in the spinal cord.

High-yield facts

  • Lesion in spinal cordipsilateral UMN signs below the lesion
  • UMN signs: weakness, spasticity, hyperreflexia, Babinski
  • Lesion above pyramidal decussation (brain) → contralateral UMN signs

The 10-second “Where do I expect deficits?” algorithm

  1. Identify modality:
    • Vibration/position → DCML
    • Pain/temp → Spinothalamic
    • UMN weakness → CST
  2. Apply crossing rule:
    • DCML crosses in medulla → spinal cord lesion = ipsilateral
    • Spinothalamic crosses near entry → spinal cord lesion = contralateral, starting 1–2 levels down
    • CST crosses in medulla → spinal cord lesion = ipsilateral
  3. Localize level: look for a sensory level and/or associated LMN signs at the level.

Somatotopy hacks (very testable)

Dorsal columns

  • Legs medial, arms lateral
    • Gracilis (legs) hugs the midline

Spinothalamic and CST (lateral funiculus)

Think: Sacral fibers are “saved” because they sit on the outside (more peripheral).

  • Spinothalamic: SALT = Sacral Alateral, Lumbar, Thoracic, Cervical more medial
  • CST: often taught similarly (sacral more lateral), helping explain sacral sparing in some central cord processes

Clinical tie-in

  • Central cord lesion can preferentially hit cervical fibers (more medial) → arms affected > legs.

High-yield lesion patterns (the ones Step loves)

Brown-Séquard syndrome (hemisection of spinal cord)

Mnemonic: “Same side motor & vibration; Opposite pain”
Findings below the lesion:

  • Ipsilateral:
    • UMN signs (CST)
    • Loss of vibration/proprioception (DCML)
  • Contralateral:
    • Loss of pain/temp (spinothalamic) starting ~1–2 levels below

At the level of the lesion:

  • Possible LMN signs (anterior horn)
  • Possible ipsilateral loss of all sensation in the dermatome (damage to dorsal root)

Anterior spinal artery infarct (anterior 2/3 cord)

Key idea: posterior columns are spared.

  • Bilateral loss of pain/temp (spinothalamic)
  • Bilateral weakness (CST)
  • DCML preserved (vibration/proprioception intact)

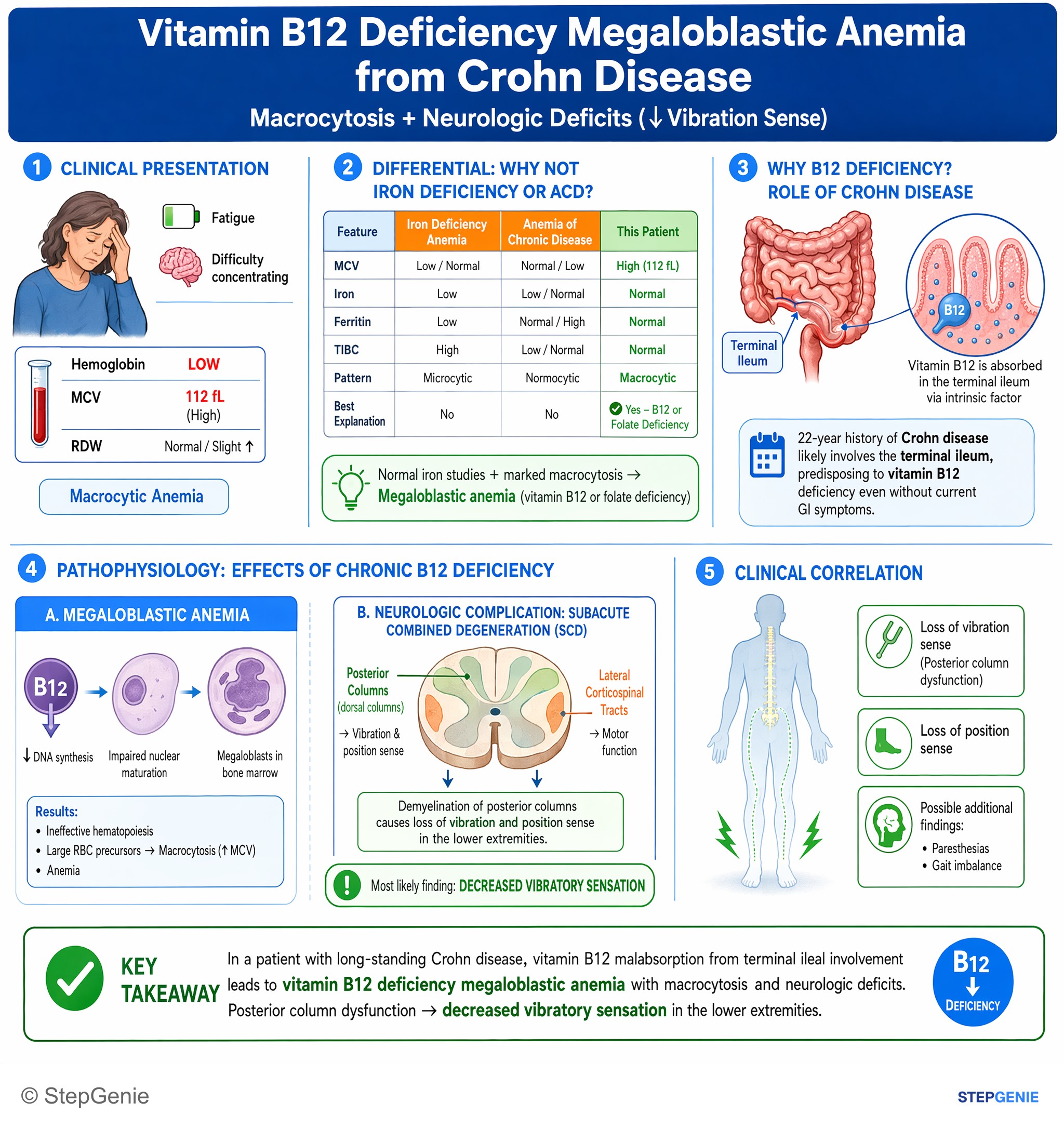

Subacute combined degeneration (B12 deficiency)

  • DCML + CST involvement → “combined”
  • Vibration/position loss + ataxia + UMN signs
  • Often with neuropsychiatric symptoms + macrocytic anemia (but neuro can occur without severe anemia)

Syringomyelia

  • Expanding central cavity hits anterior white commissure
  • Bilateral pain/temp loss in a cape-like distribution (often upper extremities)
  • DCML initially spared

Quick-reference table (save this)

TractLocationModalityWhere it crossesSpinal cord lesion deficit
DCMLPosterior columnsVibration, proprioception, fine touchMedullaIpsilateral loss below lesion
SpinothalamicAnterolateralPain, temperature, crude touchSpinal cord (1–2 levels via AWC)Contralateral loss starting 1–2 levels below
Lateral CSTLateral funiculusVoluntary motorMedulla (pyramids)Ipsilateral UMN signs below lesion

Ultra-high-yield “one-liners” you can quote on test day

  • DCML: “Posterior column sensory stays ipsilateral until the medulla.”
  • Spinothalamic: “Pain/temp crosses early through the anterior white commissure.”
  • CST: “Motor crosses at the pyramids; spinal cord lesion = ipsilateral UMN.”
  • Brown-Séquard:Same side motor + vibration, opposite pain.”
  • Anterior spinal artery: “Motor + pain/temp gone; vibration/position spared.”
