Pulmonary embolism (PE) is one of those USMLE “blink and you miss it” diagnoses: the patient looks like a lot of other things (pneumonia, panic attack, MI), but the correct next step depends on recognizing the pattern fast. A memory palace makes PE stick because you can walk through the pathophys + diagnosis + treatment in one mental scene.
The Memory Palace: “The Lung Airport Security Checkpoint”
Picture the pulmonary vasculature as an airport where blood is trying to board oxygen flights. A clot (embolus) is a suspicious suitcase that jams security, backs up the line, and triggers alarms throughout the terminal.
Room 1 — The Gate Jam (What PE is)
At the security gate, a big suitcase blocks the main lane: embolus obstructs a pulmonary artery → perfusion drops to ventilated alveoli.
One-liner: PE causes a V/Q mismatch with increased dead space (ventilation without perfusion).
- Ventilation: present
- Perfusion: decreased/absent
- Result: hypoxemia + tachypnea
Room 2 — The Alarm Panel (Classic presentation)
Above the gate is a flashing red sign: “SUDDEN”.
Think: sudden onset dyspnea, pleuritic chest pain, tachypnea, tachycardia.
High-yield extras:
- Hemoptysis = suggests pulmonary infarction (more likely with smaller emboli + limited collateral flow)
- Syncope or hypotension = think massive PE with obstructive shock
- Fever can happen (don’t get baited into pneumonia)
Mini-table: “What symptom points where?”
| Finding | Think |
|---|---|
| Sudden dyspnea + pleuritic CP | PE until proven otherwise |
| Hypotension + JVD + clear lungs | Massive PE (obstructive shock) |
| Hemoptysis + pleuritic pain | Pulmonary infarct (often peripheral) |
Room 3 — The “Risk Factor Baggage Claim”
At baggage claim, you see suitcases labeled with PE risk factors. This is where USMLE loves to hide the answer.
“The 3 Suitcase Labels”
- Stasis (long flight/immobility, stroke, heart failure, hospitalization)
- Endothelial injury (surgery, trauma)
- Hypercoagulable state (cancer, pregnancy, OCPs, Factor V Leiden, antiphospholipid syndrome)
One-liner: PE risk factors = Virchow triad.

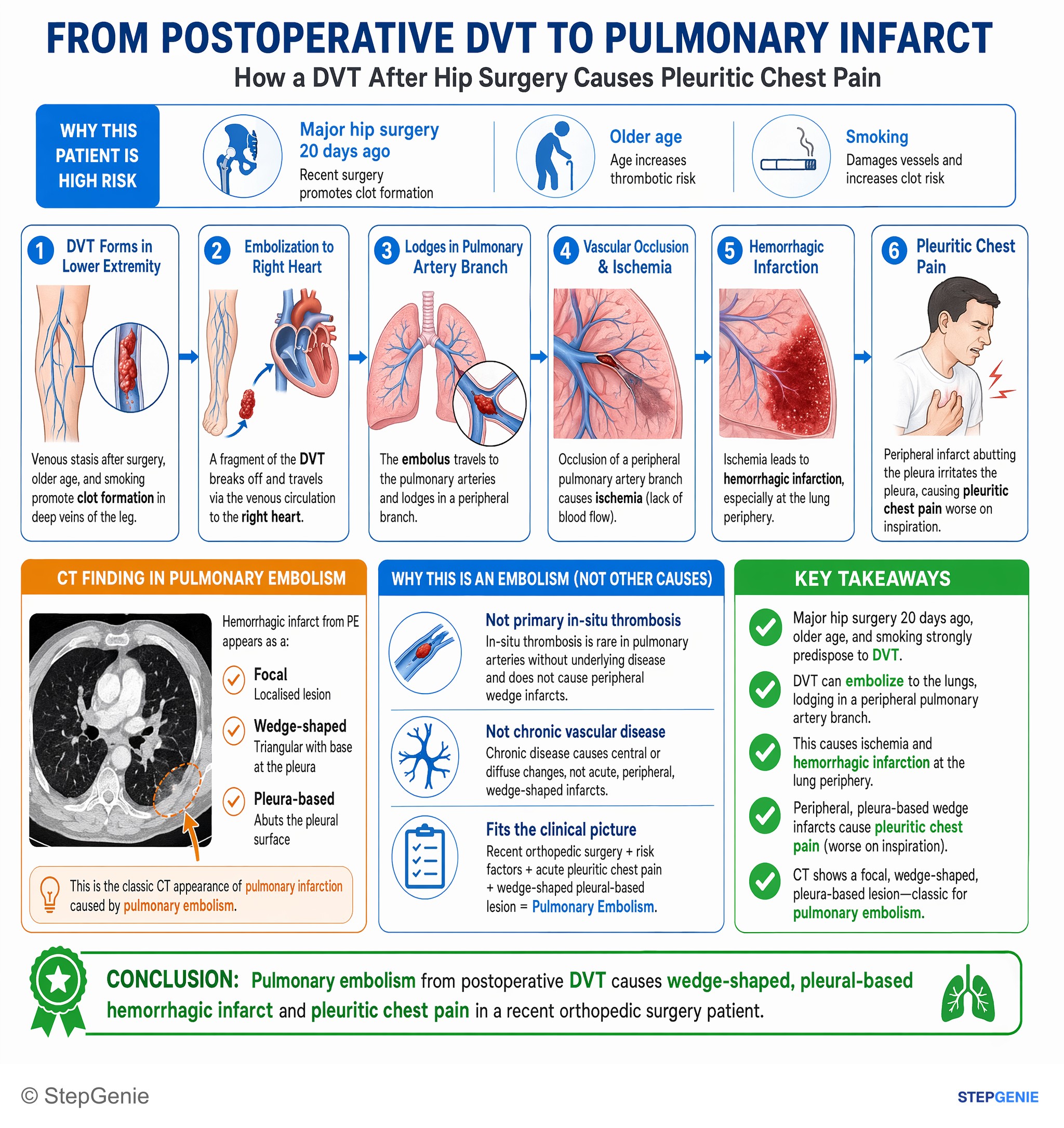

High-yield: DVT origin
- Most PEs come from proximal lower extremity DVTs (popliteal/femoral/iliac) rather than distal calf veins.
Room 4 — The “Gas Exchange Billboard” (ABG + physiology)
There’s a big billboard displaying blood gases:
ABG pattern you should expect
- Respiratory alkalosis early: hyperventilation →
- Hypoxemia:
- Increased A–a gradient (key testable concept)
One-liner: PE typically causes hypoxemia + respiratory alkalosis + increased A–a gradient.
High-yield physiology:
- PE decreases perfusion → some alveoli become dead space
- Hypoxemia triggers hyperventilation
- The body may also shunt blood to better-perfused units, worsening mismatch
Room 5 — The “ECG Security Camera” (EKG + CXR)
You check the security footage.
ECG: what’s actually high-yield
Most common: sinus tachycardia.
Classic board-famous but less sensitive:
- S1Q3T3 (deep S in I, Q wave + inverted T in III) = acute right heart strain
- Right axis deviation, RBBB, T-wave inversions in right precordials (V1–V4) can show strain
CXR: often unimpressive
- Can be normal
- May show atelectasis or small pleural effusion
“Classic” signs you might see in question stems:
- Hampton hump: wedge-shaped infarct near pleura
- Westermark sign: regional oligemia (decreased vascular markings)
One-liner: Normal CXR + hypoxemia + pleuritic pain = PE is climbing the list.
Room 6 — The “Right Ventricle Panic Room” (Massive PE)
Behind a locked door is the right ventricle (RV) sweating.
What massive PE does
Large clot → abrupt pulmonary vascular resistance → acute RV dilation/strain → decreased LV preload → hypotension.
One-liner: Massive PE = obstructive shock from acute RV failure.
High-yield bedside clue:
- Clear lungs + hypotension + JVD = obstructive physiology (massive PE, tamponade, tension PTX)
Room 7 — The Testing Hallway: Choosing the right next step
This is the “don’t lose points” corridor. The best test depends on stability and pretest probability.
Step 1: Is the patient hemodynamically unstable?
- Unstable (hypotension/shock):
- If PE suspected → bedside echo (look for RV strain)
- Often proceed to urgent reperfusion treatment if high suspicion
- Stable: use pretest probability tools + targeted testing
Step 2: Stable patient—use pretest probability
Common exam flow:
- Low probability + PERC negative → no testing
- Low/intermediate probability → D-dimer
- High probability → go straight to CT pulmonary angiography (CTPA) (don’t waste time with D-dimer)
Quick “D-dimer truth”
- Great for ruling out in low/intermediate risk when negative
- Not specific: elevated in inflammation, pregnancy, cancer, post-op, etc.
Imaging choices (high-yield)
| Test | Best when | Key notes |
|---|---|---|
| CTPA | Most stable patients | First-line imaging in many settings |
| V/Q scan | Pregnancy, contrast allergy, renal failure | Best if normal CXR; “high probability” supports PE |
| Compression ultrasound | DVT suspected; can support PE diagnosis | If proximal DVT found, treat as VTE |
Room 8 — The Treatment Lounge (What to do now)
Immediate management (most suspected/confirmed PEs)
- Anticoagulate (unless contraindicated)
- Heparin products (e.g., UFH/LMWH) initially; DOACs commonly used outpatient depending on scenario
One-liner: PE treatment = anticoagulation; add thrombolysis or thrombectomy if massive/unstable.
When to give thrombolysis?
- Massive PE with hemodynamic instability (shock/hypotension) → systemic thrombolysis (if no major contraindications)
- “Submassive” PE (RV strain but normotensive) → individualized; often anticoagulation ± catheter-directed options depending on bleeding risk and severity
IVC filter: the board-style indication
- Acute VTE + absolute contraindication to anticoagulation (or recurrent VTE despite adequate anticoagulation)
The Visual Mnemonic (Shareable)
“PE = Airport Security JAM”
- Suitcase blocks gate → ↓ perfusion → dead space
- Alarms blare → sudden dyspnea + pleuritic pain + tachycardia
- Baggage labels → Virchow triad
- Gas billboard → resp alkalosis + ↑A–a gradient
- Security camera → sinus tachy (± S1Q3T3)
- RV panic room → massive PE = obstructive shock
- Testing hallway → unstable? echo; stable? D-dimer/CTPA
- Treatment lounge → anticoagulation; thrombolysis if massive
Rapid-Fire USMLE High-Yield Pearls
- Most common ECG: sinus tachycardia
- ABG: respiratory alkalosis + hypoxemia + increased A–a gradient
- Path: PE = V/Q mismatch (dead space)
- Most PEs come from proximal DVTs
- Massive PE: hypotension from acute RV failure
- Negative D-dimer is most useful in low/intermediate risk patients
- Pregnancy/contrast contraindication: consider V/Q scan (especially with normal CXR)
