Renal artery stenosis (RAS) is one of those “hypertension questions” that becomes easy once you draw the physiology once and reuse it forever. If you can picture a narrowed renal artery tricking the kidney into thinking the body is hypotensive, you’ll predict the labs, the physical exam, and the medication effects in seconds.
The one-liner (memorize this)
Renal artery stenosis = decreased renal perfusion → increased renin → increased angiotensin II + aldosterone → hypertension (often resistant) + hypokalemic metabolic alkalosis.
Draw-it-out method (quick sketch you can recreate on test day)

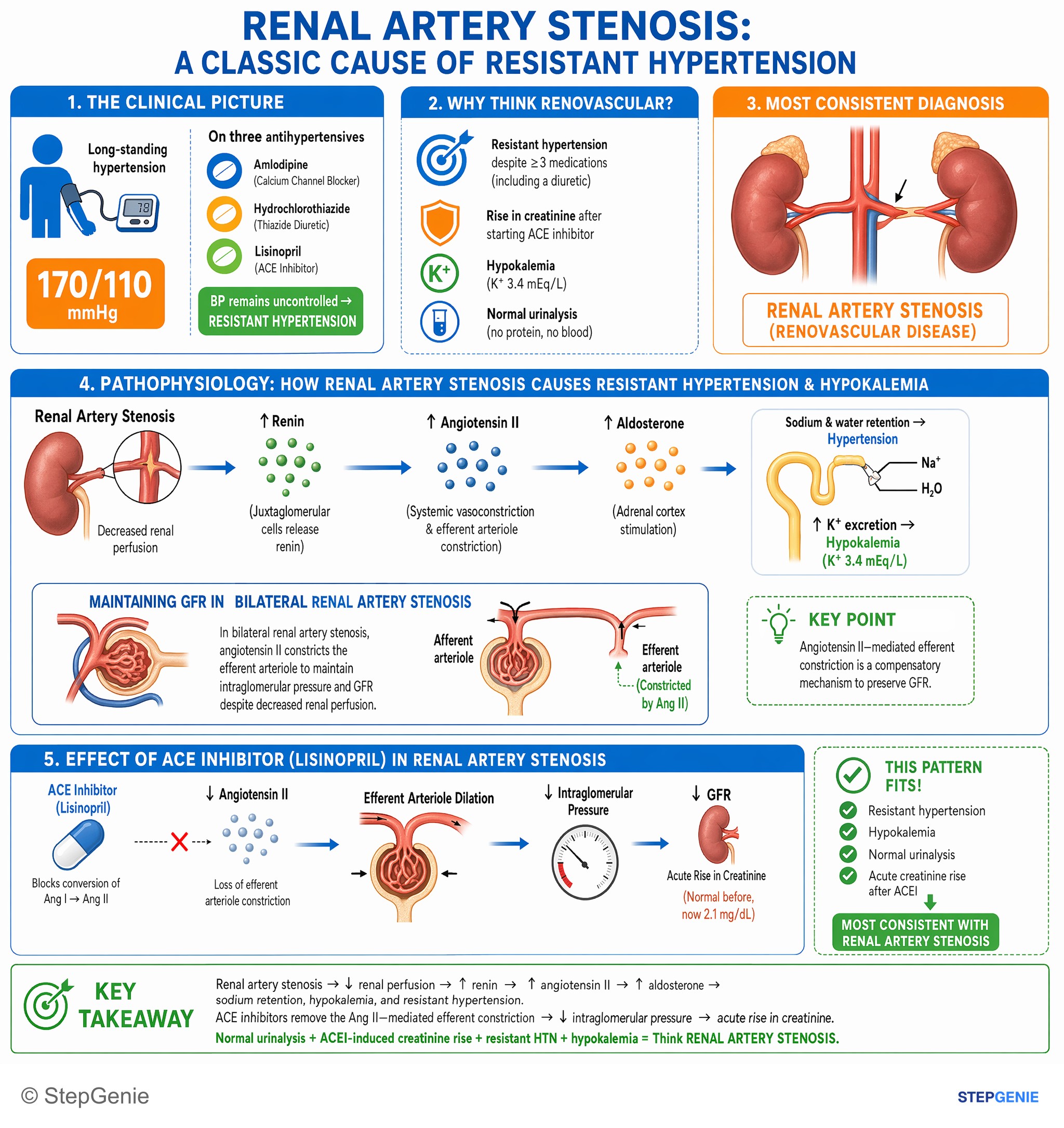

Step 1: Draw the core flowchart
Use this simple “kidney panic pathway”:
Renal artery stenosis (↓ renal blood flow/pressure)
→ JG cells: ↑ renin
→ ↑ angiotensin II (systemic vasoconstriction + efferent arteriole constriction)
→ ↑ aldosterone
→ ↑ Na⁺/H₂O retention + ↑ K⁺/H⁺ loss
→ Hypertension + hypokalemic metabolic alkalosis
Step 2: Add the “ACEi clue” branch
Now add the classic twist:
- Ang II constricts efferent arteriole to maintain glomerular pressure (especially when renal perfusion is low).
- If you block Ang II (ACE inhibitor/ARB), the efferent arteriole dilates, intraglomerular pressure drops, and GFR falls.
So in your drawing, add:
ACEi/ARB given → ↓ efferent constriction → ↓ GFR → ↑ creatinine
This is especially important in:
- Bilateral RAS
- RAS in a solitary functioning kidney
Visual mnemonic: “The Kidney Lies”
Picture the stenotic kidney holding up a sign:
“BP is LOW!” (even when the arm cuff says 180/110)
Because the kidney senses local perfusion, not systemic blood pressure, it “lies” to the body by activating RAAS.
Mnemonic phrase:
“Stenosed kidney screams ‘RENIN!’”

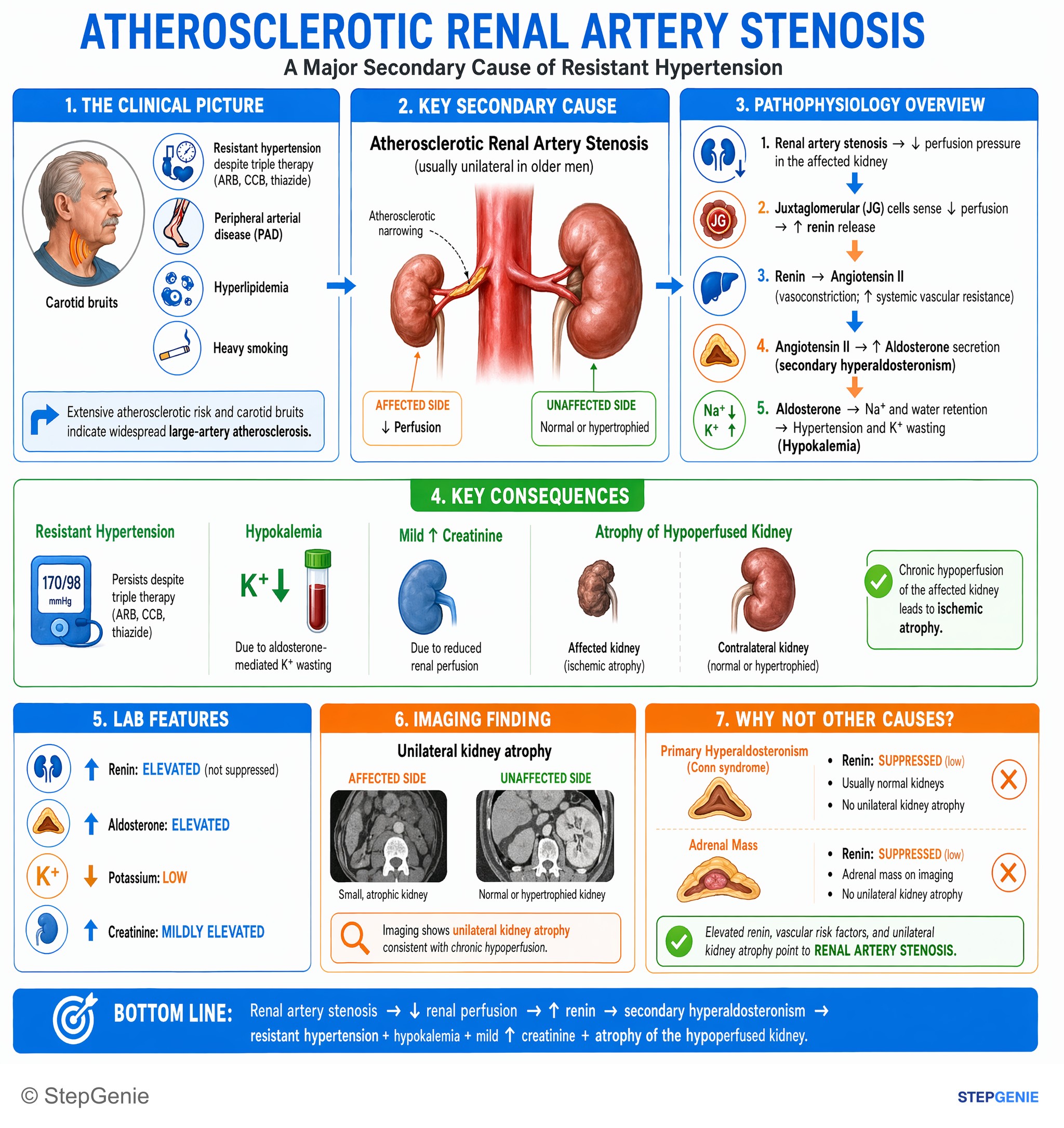

High-yield etiologies: atherosclerosis vs fibromuscular dysplasia
| Feature | Atherosclerotic RAS | Fibromuscular dysplasia (FMD) |
|---|---|---|
| Typical patient | Older adult, vascular risk factors | Young woman |
| Pathology | Plaque at ostium/proximal renal artery | “String of beads” in mid-to-distal artery |
| Exam clue | May have diffuse atherosclerosis | May have carotid/vertebral involvement too |
| Imaging buzzword | Proximal narrowing | “String of beads” on angiography |
| Treatment vibe | Medical therapy ± revascularization selected cases | Percutaneous angioplasty often effective |
Classic presentation (Step-friendly)
Think secondary HTN when you see:
- Resistant hypertension (uncontrolled on 3 meds including a diuretic)
- Abdominal bruit (epigastric/flank), sometimes lateralizing
- Unexplained hypokalemia (from aldosterone; may be worsened if on diuretics)
- Rise in creatinine after starting ACEi/ARB (big clue)
Lab/physiology pattern (the “predictable triad”)
RAS tends to push you toward:
- ↑ Renin
- ↑ Aldosterone
- ↓ Potassium and metabolic alkalosis (via increased H⁺ secretion in alpha-intercalated cells)
Unilateral vs bilateral: what changes?
Unilateral RAS
- The stenosed kidney pumps out renin → systemic HTN.
- The other kidney sees the higher systemic pressure and can natriurese (“pressure natriuresis”), partially buffering volume.
Net: Often more renin-driven HTN; kidney function may stay closer to normal initially.
Bilateral RAS (or solitary kidney)
- Both kidneys perceive low perfusion → strong RAAS activation.
- ACEi/ARB can drop GFR significantly because both kidneys rely on Ang II–mediated efferent constriction.
Net: Higher risk of acute kidney injury after ACEi/ARB, especially if volume depleted.
Diagnosis: what USMLE expects you to recognize
Common test-facing options:
- Renal artery duplex ultrasound (noninvasive screening)
- CTA or MRA (anatomic evaluation; consider renal function/contrast risks)
- Renal arteriography = definitive (invasive; often tied to intervention)
A frequent board-style line is:
“Creatinine increased after ACE inhibitor” + “abdominal bruit” → suspect RAS.
Treatment (conceptual, exam-focused)
- Risk factor management: statin, smoking cessation, diabetes control (atherosclerotic disease)
- Antihypertensives:
- ACE inhibitors/ARBs can be great in unilateral RAS (monitor creatinine and potassium)
- Use caution in bilateral RAS/solitary kidney
- Revascularization (angioplasty ± stent): selected cases (e.g., FMD, refractory HTN, recurrent flash pulmonary edema, progressive renal dysfunction attributable to RAS)
Rapid-fire USMLE pearls
- Abdominal bruit + severe HTN = renovascular disease until proven otherwise.
- ACEi/ARB → rise in creatinine is a feature, not a side effect, when it’s due to loss of efferent constriction.
- Hypokalemia + metabolic alkalosis points to hyperaldosteronism physiology—RAS is a classic secondary cause.
- FMD = young woman + “string of beads” + responds well to angioplasty.
Shareable “final snapshot”
RAS = kidney underperfused → renin surge → Ang II vasoconstriction + aldosterone → resistant HTN ± hypokalemic metabolic alkalosis; ACEi/ARB can unmask it by dropping GFR (↑ Cr), especially if bilateral.
